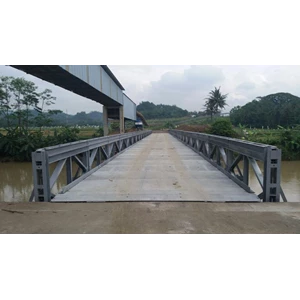

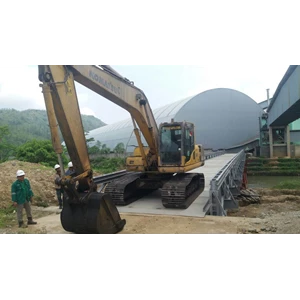

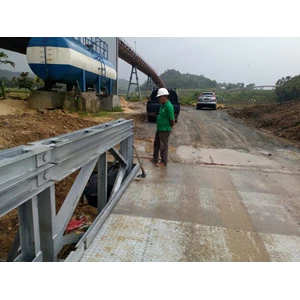

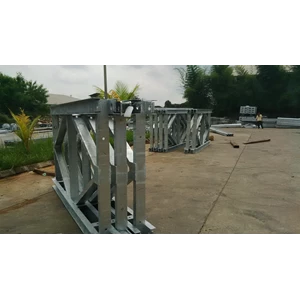

Bailey Bridge CGM Span 6 meter - 30meter SSR DSR TSR QSR DDR

PT. CHASANA GLOBAL MANDIRI (CGM) is a company engaged in the production services of Corrugated Steel Pipe Armco or commonly called Galvanized Steel Culverts. Corrugated Steel Pipe / Gorong-Gorong Baja can be used / applied for Drainage / culverts, irrigation canals, sewers, bridges, tunnels, underpasses or for other constructions such as the conveyor cap. The types / types of Corrugated Steel Pipe are as follows:*) Type of Nestable Flange E-100 (NF), type two upper and lower shaft. The type which is the simplest and most versatile for culverts, irrigation canals, sewerage drains, small bridges and conveyor lids. The size / diameter starts from: 450 mm, 500 mm, 600 mm, 800 mm, 900 mm, 1000 mm, 1200 mm, 1400 mm, 1500 mm, 1600 mm and 1800 mm with a thickness of plate thickness of 2.0 mm, 2.5 mm, 3.0 mm and 3.5 mm with specs extending 1000 mm*) Full round type Multi Plate Pipe (MPP) type with wave plate sheets assembled to the desired shape and size. For sizes ranging from 1500 mm, 1800 mm, 2100 mm, 2250 mm, 2400 mm, 3000 mm, 3300 mm, 3600 mm, 4050 mm, 4200 mm, 4500 mm, 4800 mm, 5100 mm, 6000 mm to 8500 mm with plate thickness of 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm and 7.0 mm extended 2400 mm*) Multi Plate Pipe Arches (MPPA) type round oval with wave plate sheets are assembled according to the desired shape and size. The size / stretch starts from a stretch of 1850 mm armco height 1550 mm up to a stretch of 6350 mm height 3950 mm with a plate thickness of 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm and 7.0 mm extending 2400 mm *) Multi Plate Arches (MPA) type of special semicircle is assembled according to the shape and size needed. This type of semicircle is assembled / seated on a prepared foundation. The sizes range from a stretch of 2000 mm height 890 mm to a stretch of 8500 mm height 4210 mm plate thickness 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm and 7.0 mm extended 2400 mm*) Multi Plate Type Underpass and*) Multi Plate Super Span TypeIn addition to Corrugated Steel Pipe / Steel Steel Pipes, PT. CHASANA GLOBAL MANDIRI also provides / manufactures Guardrail Road Safety Fence and Bailey Panel Bridge productionFor more information, contact our marketing team.
